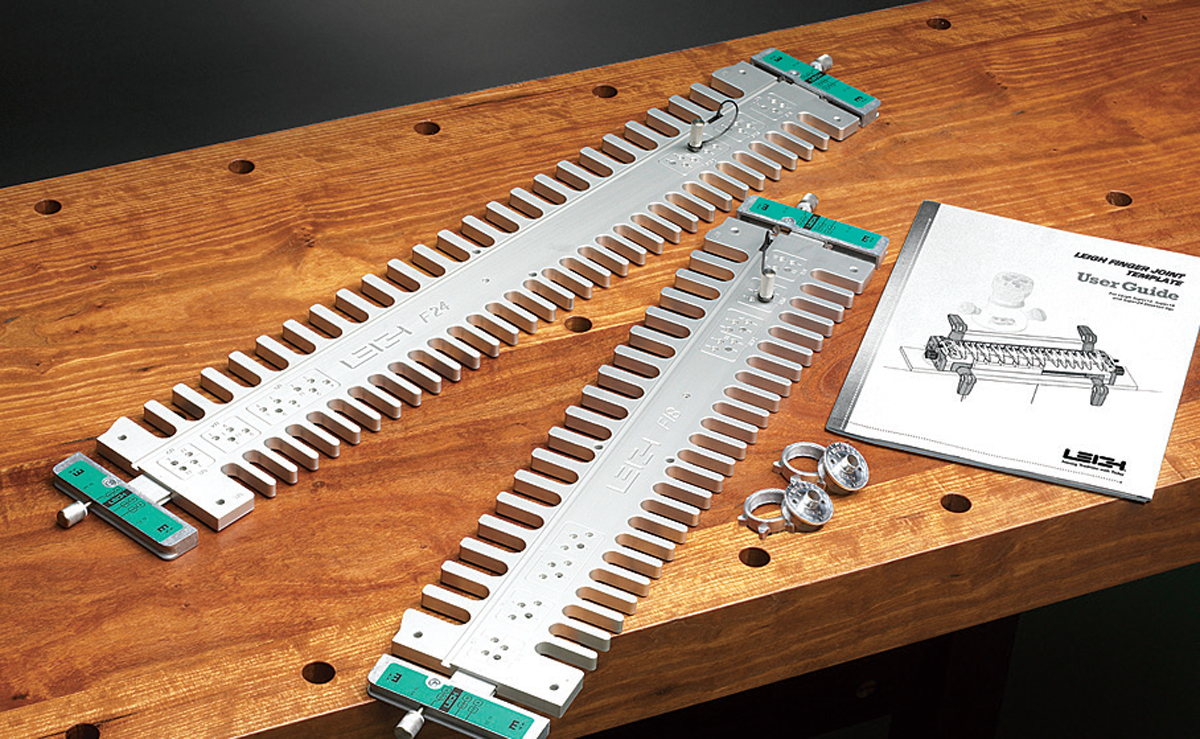

F18 and F18M / F24 and F24M
Box Joint Templates for Super Jigs
Turn your 18" or 24" Super Jig into a superb box joint jig!

Finger joints, also called box joints, add visually striking symmetrical design and amazing strength to any corner assembly.

All Leigh Super Jigs can produce 5/16” and 5/8” finger joints using the dovetail finger assembly that comes with the jig.

Now, with a Leigh Finger Joint template mounted on your 18” or 24” Super Jig, you can rout an additional six standard sizes of finger joints; 3/32”, 3/16”, 3/8” 1/8”, 1/4” & 1/2”. An additional two custom sizes, 3/4” and 1”, are easily routed by following a procedure in the User Guide. That's 8 additional sizes. But it doesn’t stop there. A Leigh Technical bulletin includes instructions to rout double and triple size joints, all with the same incredible accuracy.


Play Video

F18 and F24 Finger Joint Templates Overview video

Create Beautiful Joinery Projects

Rout the perfect sized joint to suit any woodworking project.

Through Box / Finger Joints
  • Quarter size: jewelry box 3/32", 1/8" (2mm)
  • Miniature pieces like jewelry boxes
Through Box / Finger Joints
  • Half size: wine box 5/32", 3/16", 1/4" (4, 6mm)
  • Wine gift boxes
Through Box / Finger Joints
  • Full size: 5/16", 3/8", 1/2" (8 10, 12mm)
  • Stool, sturdy storage box
Through Box / Finger Joints
  • Double size: 5/8", 3/4", 1"(16, 20, 24mm)
  • storage box for heavy items
Half-Blind Box / Finger Joints
  • 5/16, 3/8", 1/2"(8, 10, 12mm)
  • unique joinery application
Hinges
  • 1/8" up to 1-1/2" joints
  • box lids and cabinet hinges
Simple Operation

With the template mounted on your jig, and board clamped in jig, simply guide your router around the template comb to rout the box (finger) joints. Then reposition the template, so the mating board can be routed. It’s so easy!

Easy Step-By-Step Instructions and Superior Customer Service

Leigh has made perfect joinery easy in every way, from thorough, step-by-step user guides and bulletins, to how-to videos. Leigh’s customer service is second to none, with instant toll-free technical support.

Router Requirements

What Router Should I Use?

Leigh recommends a midsize router, from 1-1/2 to 2-1/4 HP (9-13 amps) with a 1/2” collet. This size provides great power to weight ratio. Fixed base routers are ideal because they have a lower center of gravity with handles mounted to the router base rather than the motor, as with plunge routers. However, if you are proficient with the use of a plunge router, it works just as well.

Guide Bushing Adaptors for your Router

All Leigh Dovetail & Box Joint Jigs need a router fitted with a Leigh guide bushing. Because the router industry isn't standardized, you may need an adaptor to fit the guide bushing to your router. Learn more >

Router Collets

The F18, F18M, F24 and F24M requires a router with a 1/2" collet, and smaller bits require the use of a collet reducer.
